QL-25-B Mini Mounting Buckets

Quik-Latch QL-25-B mounting buckets have been produced to help flush-mount two components together by providing a recessed space for the body of the QL-25 series mini latch to fit into.  They are available for purchase on Amazon or any authorized distributor.

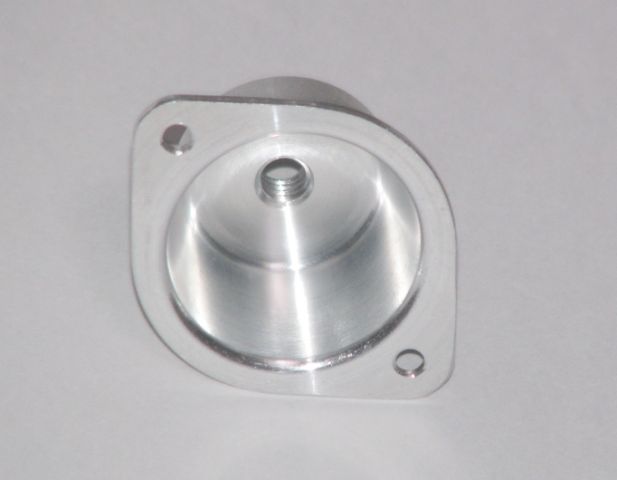

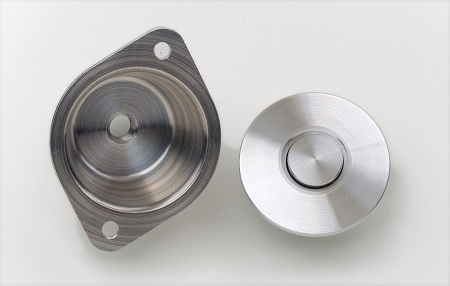

The mounting bucket is recessed to allow for the clearance of the mini-latch latching body.

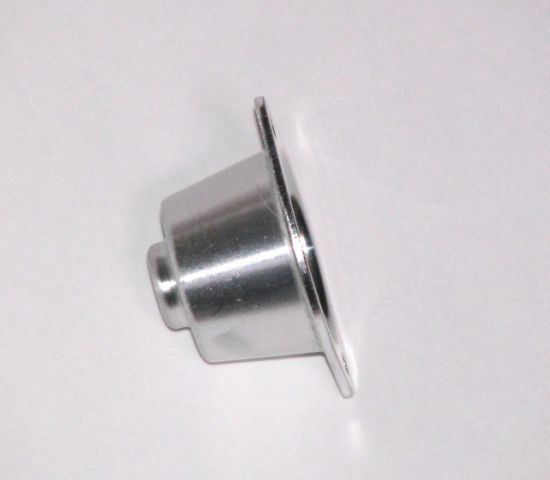

Side profile of the mounting bucket.

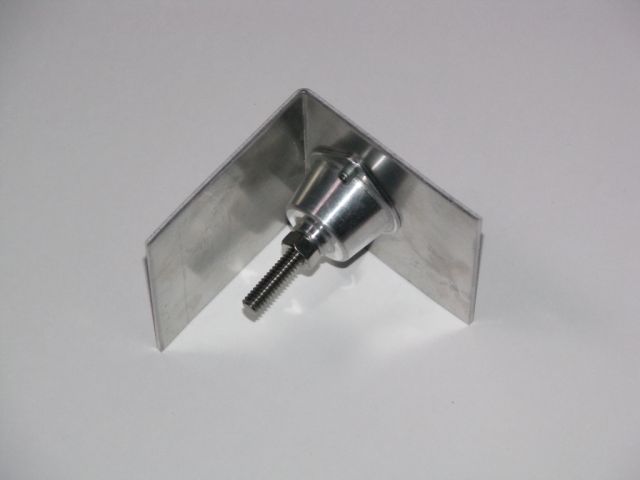

The mounting bucket is attached to the bottom side of one of the components that needs to be mated together. The mounting stud is installed into the mounting bucket and adjusted to its proper height.

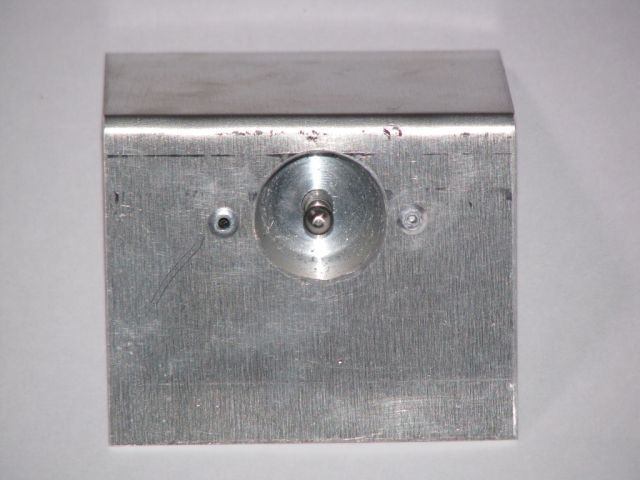

Mounting stud installed into mounting bucket, topside view

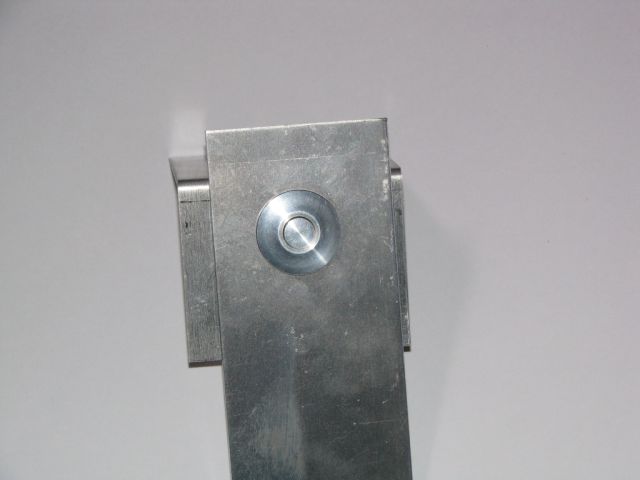

The mini-latch latching body is installed onto the second mating component. The two components are flush mounted together once the latching body snaps onto the mounting stud. To release the two mated components, simply press the latching body button.
